WeiweiWBC-400 large garden cutter, log crusher
  • WeiweiWBC-400 large garden cutter, log crusher
  • WeiweiWBC-400 large garden cutter, log crusher
  • WeiweiWBC-400 large garden cutter, log crusher
  • WeiweiWBC-400 large garden cutter, log crusher
  • WeiweiWBC-400 large garden cutter, log crusher
  • WeiweiWBC-400 large garden cutter, log crusher

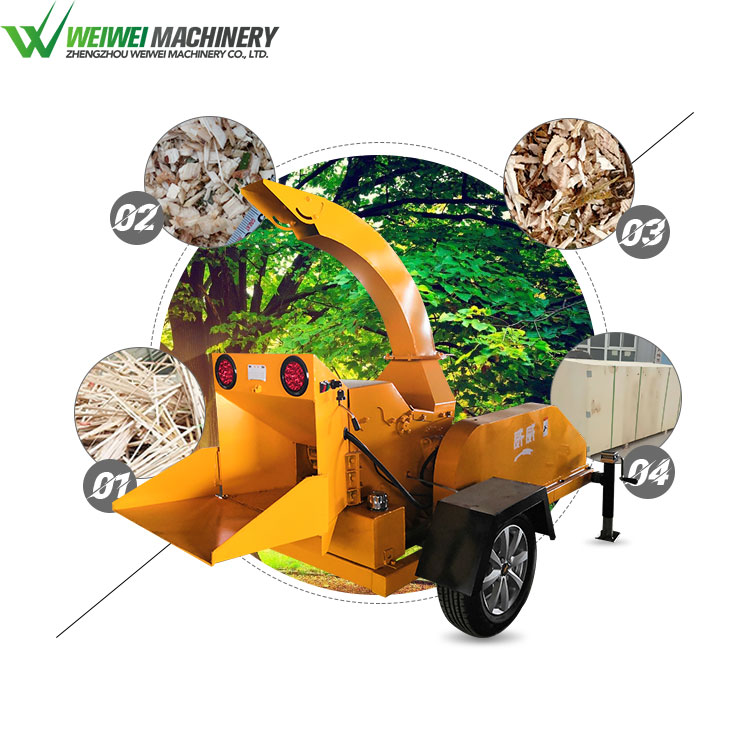

WeiweiWBC-400 large garden cutter, log crusher

Categories:wood chipper
Capacity:1.5-2.5t/h
Power:22kw

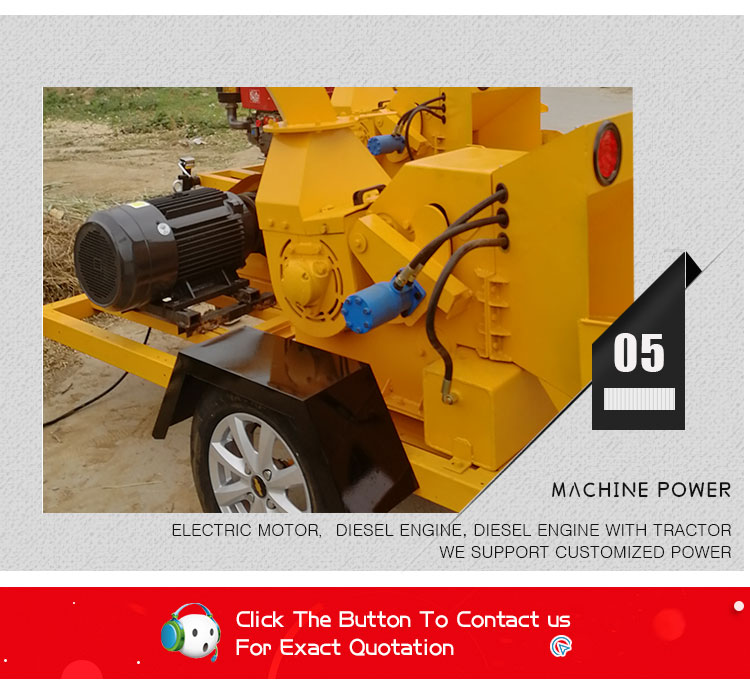

Engine:Electric ,diesel engine ,gasoline engine
Applications:Agriculture Farm Pasture Animal Husbandry Feed Industry, etc.
Tel:0086-371-63283021
Email:admin@weiweimachinery.com
WhatsApp:+86 198 3869 1608
It can cut logs up to a maximum diameter of 15 cm, various branches, tree trunks, small diameter timber, wood chips, industrial wood chips, etc. Widely used for greening, paper making, density board, biomass power generation, etc. Felling plants, garden pruning, firewood burning, fungus cultivation, etc. It is mainly used for crushing trees such as pine, miscellaneous wood, poplar, fir and raw bamboo. At the same time, the machine can also be used for chipping fibrous straw-like materials such as bamboo, thatch, corn stalks and sorghum stalks.

parameter

    Application Branch shredder
    Diameter of roller 280mm
    Power 22KW/32HP
    Capacity 1000-2000kg/h
    Starting system Electric start /Air switch start
    Blade quantity 3 pieces moving knives  1 fixed blades
    Blades size 200mm (L)
    Speed 2600r/min    /  2900r/min
    Machine size(L*W*H)mm L2.2*W1.6*H1.8M
    Power 22KW/32HP
    Engine Electric motor/diesel engine
    Feeding hole size 300*200mm

principle

The wood is placed on the feed table, crushed by the pressure rollers, the branches are then processed into chips by the cutting blades and cut with the high speed rotation of the chipping device. The chipped wood chips are sent out in the chipping chamber by the high speed airflow generated by the chipping device.

Detail

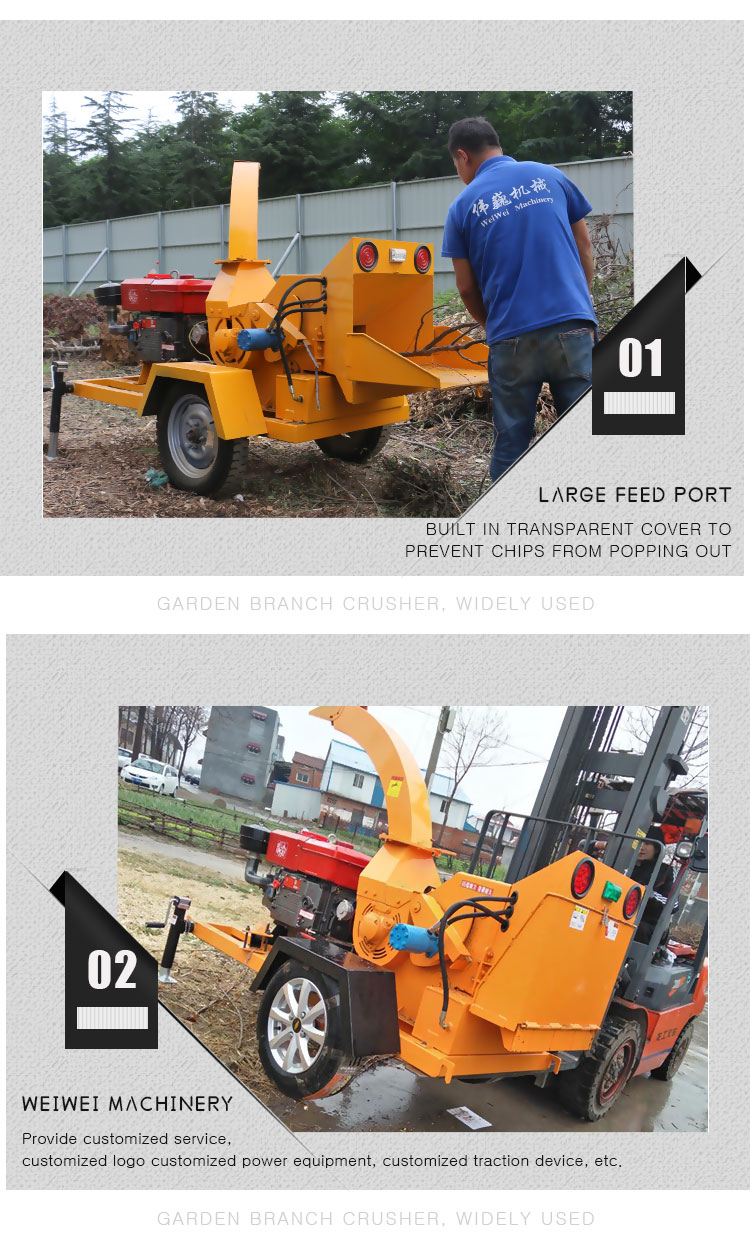

Wei-Wei branch cutting machine, is a wood garden processing machinery with cutting branches, shredding chipper.

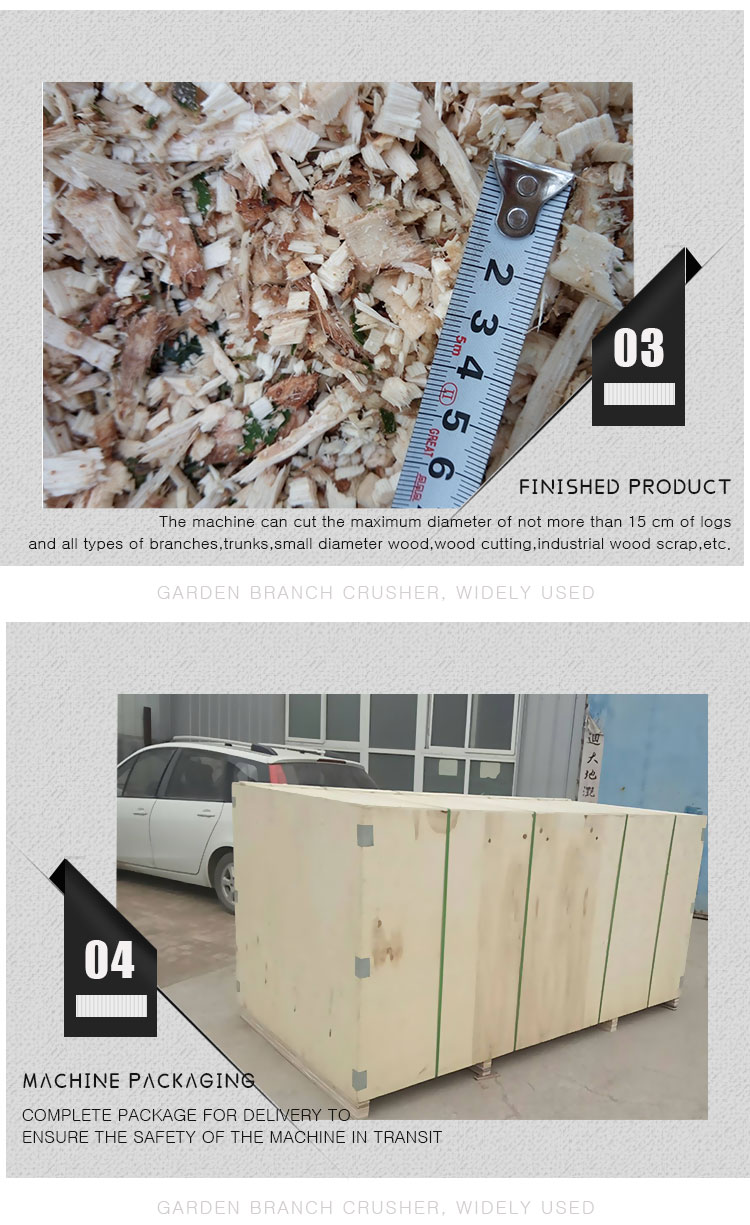

The machine can cut the maximum diameter of not more than 15 cm of logs and all types of branches, trunks, small diameter wood, wood cutting, industrial wood scrap, etc.,
Widely used in planting, papermaking,
density board, biomass power plant,
garden pruning,  burning wood,
chopped edible fungus culture, etc.
Mainly used for processing pine, miscellaneous, Hoisting wood, fir, original bamboo and other trees crushed.
 At the same time, the equipment can also be used for bamboo, thatch, cornstalk, sorghum stalk and other fibrous stalk scraps
Output per hour can reach 1-2t/h

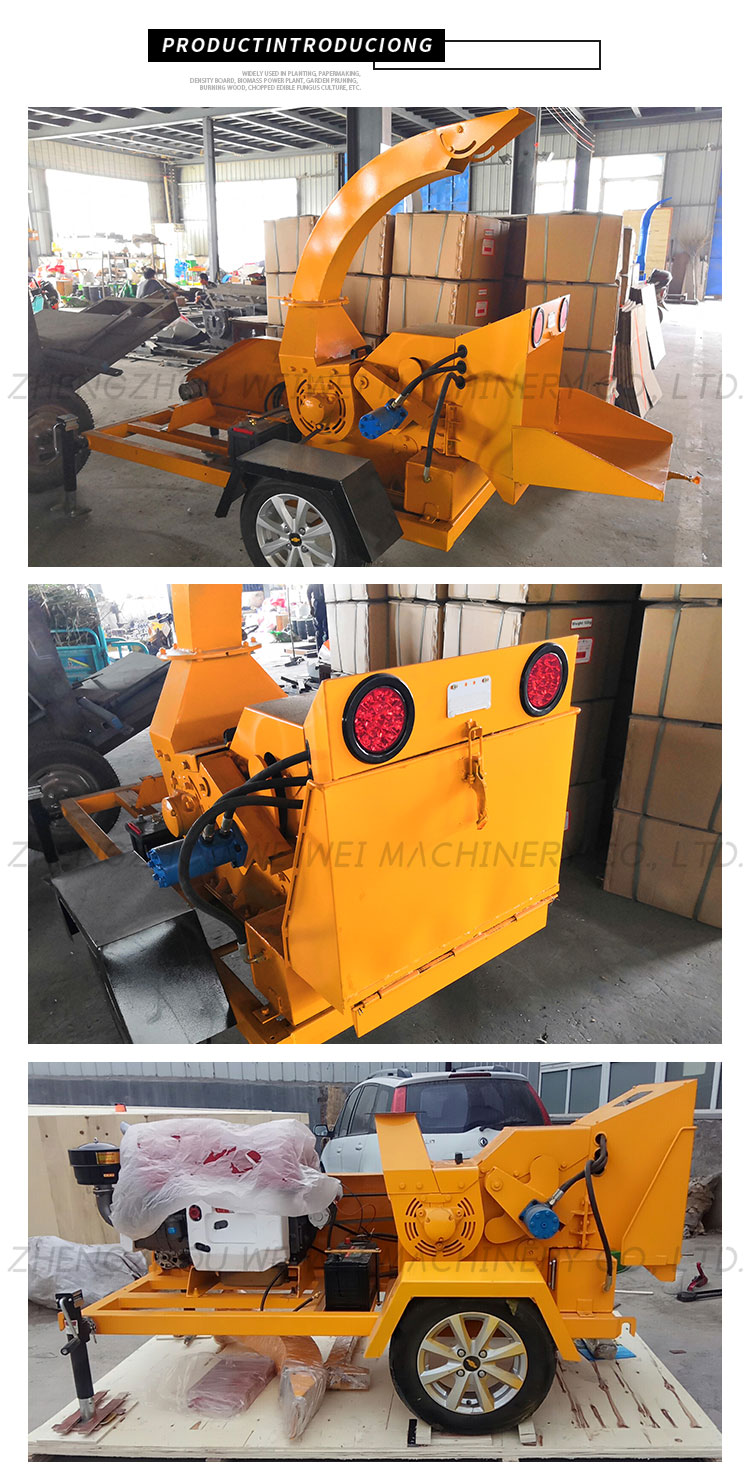

Product Details and Packaging

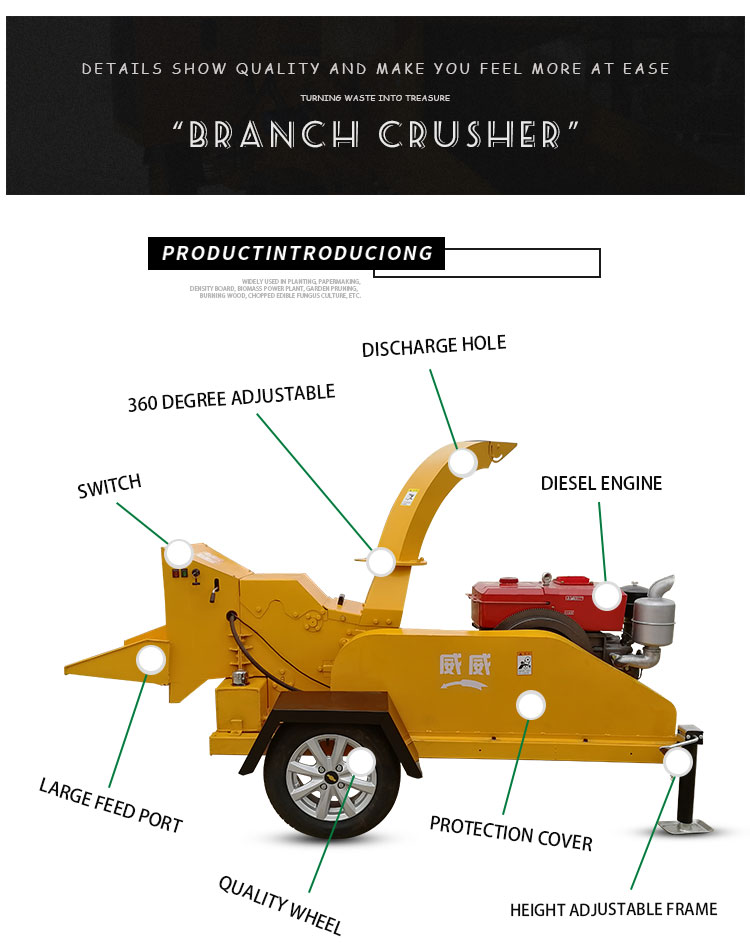

Mainly composed of feeding table, feeding roller, cutting rotor, cutting blade, hydraulic device, discharge device, tyre, power unit, traction frame, etc.

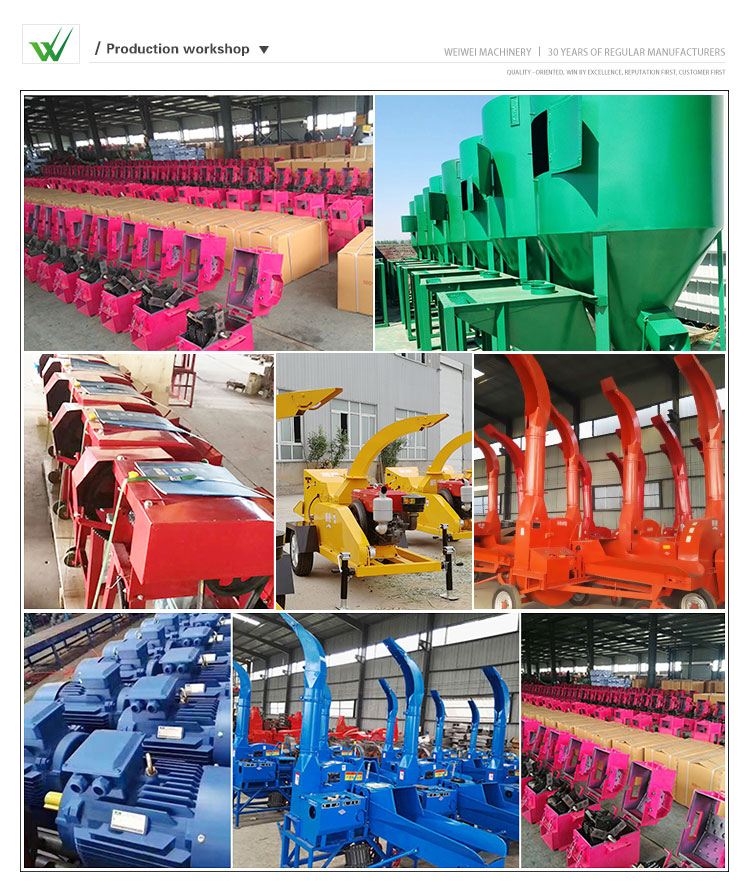

Factory and more information
