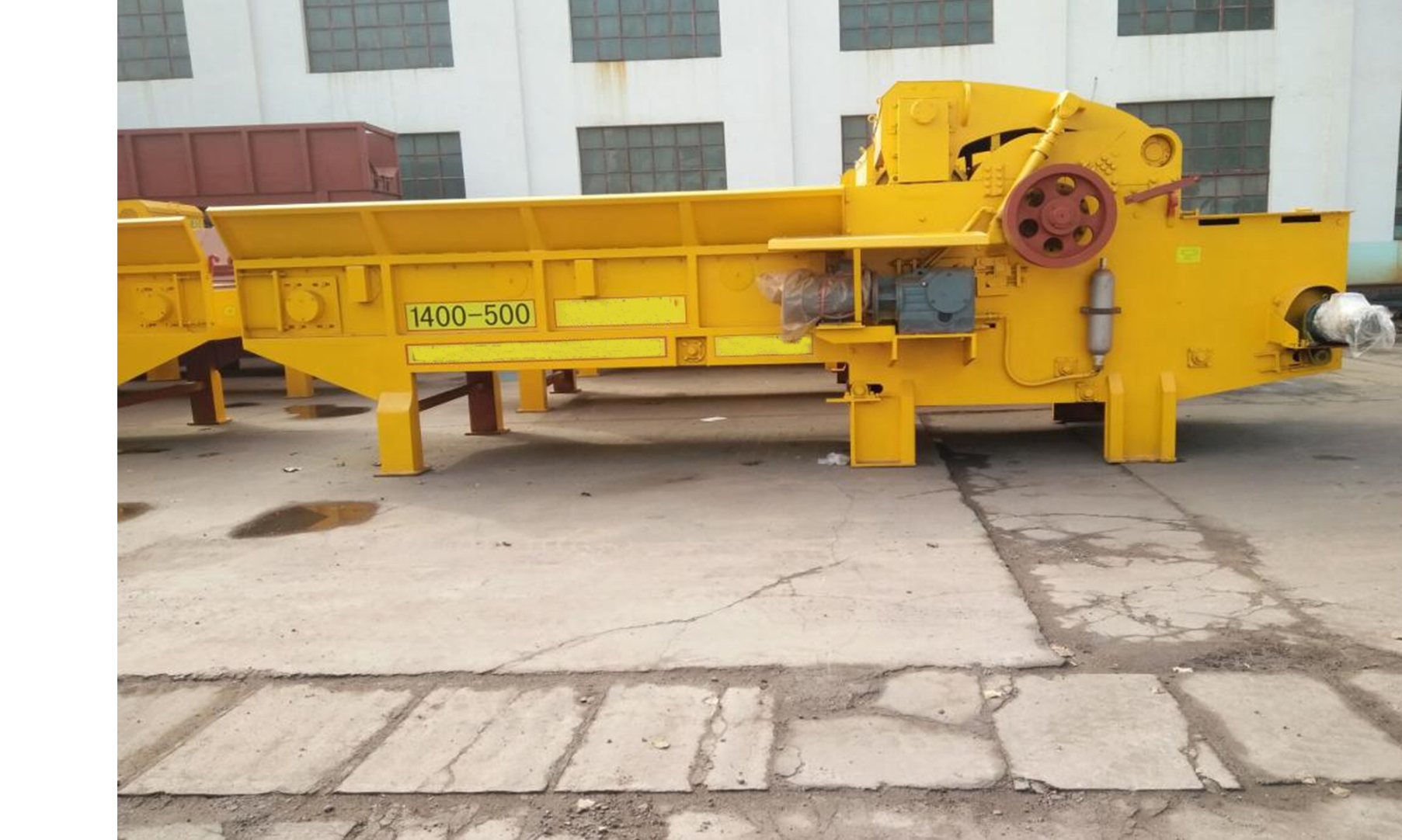

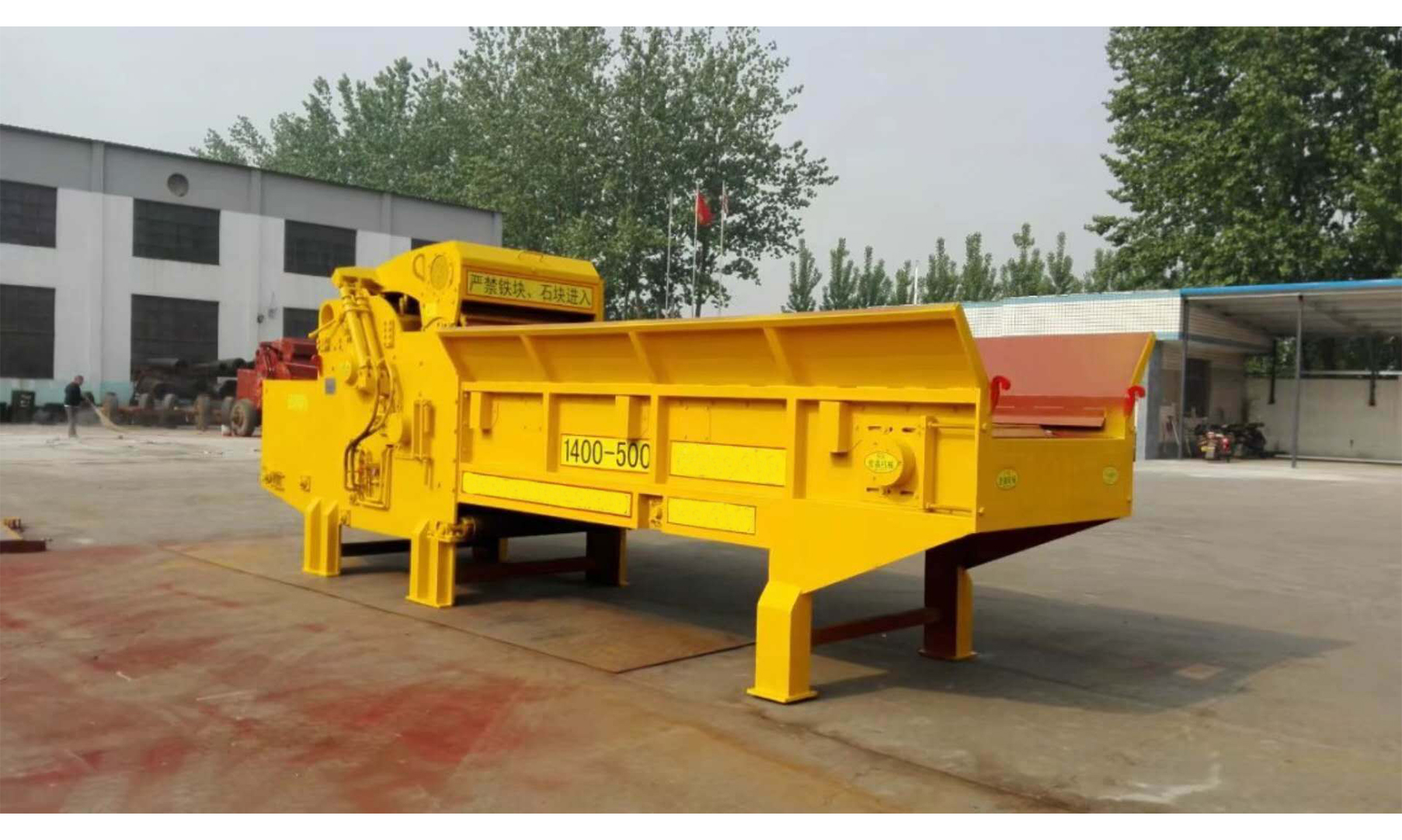

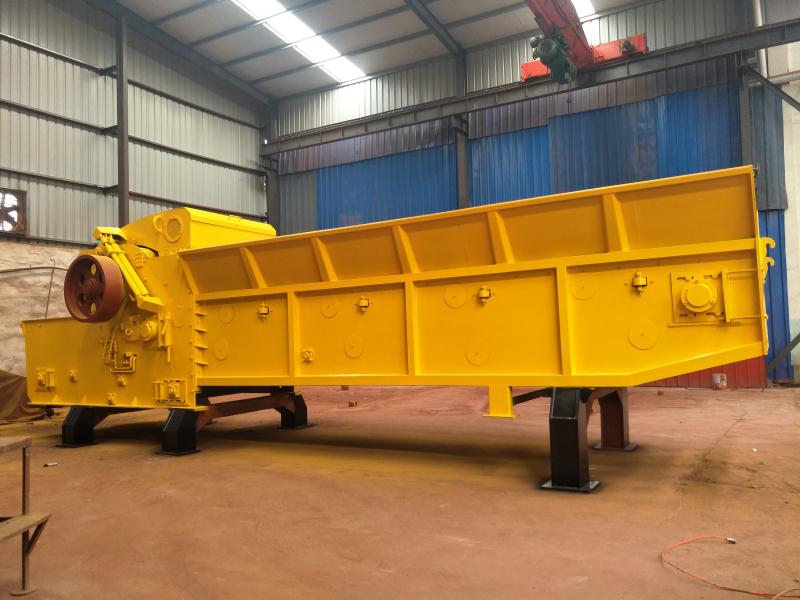

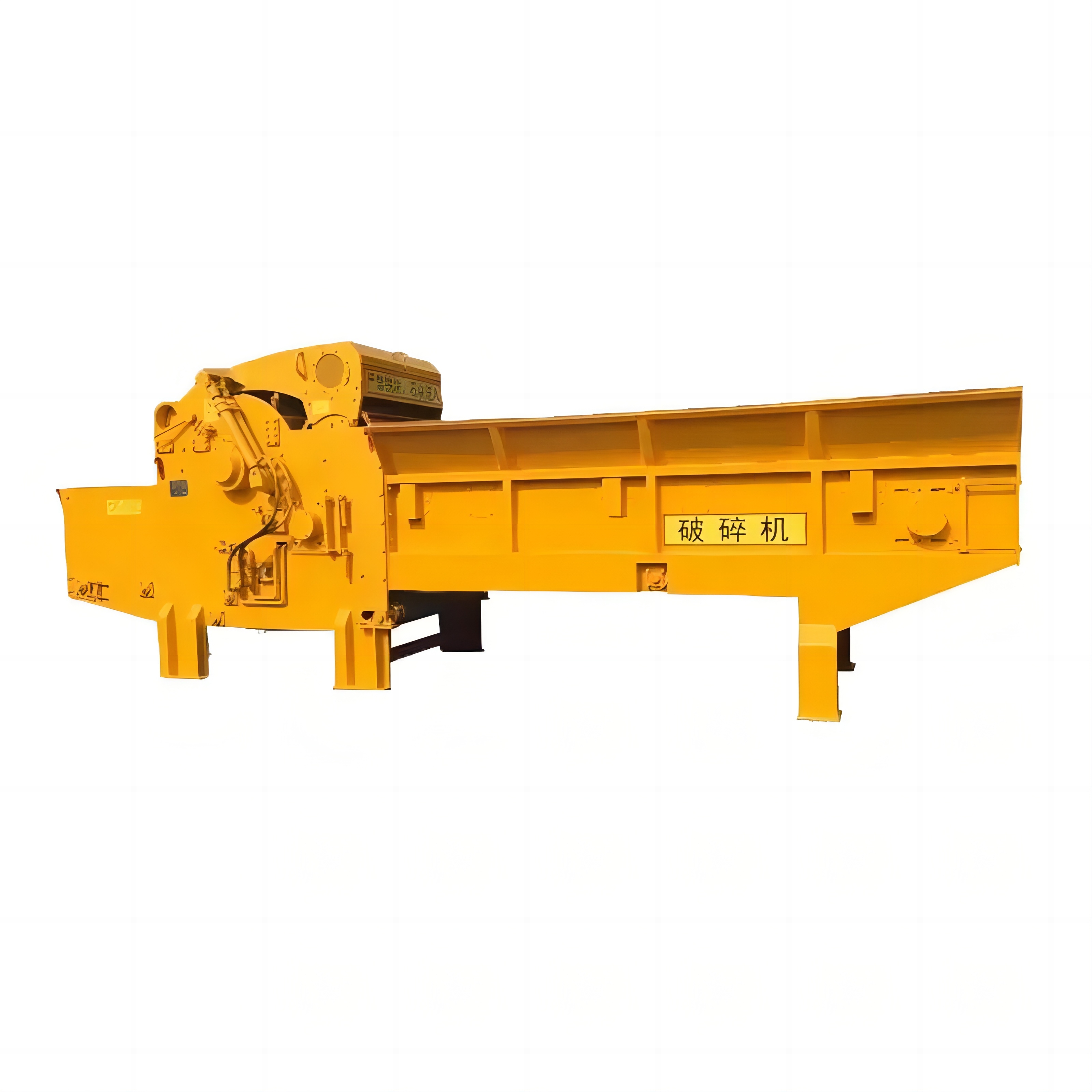

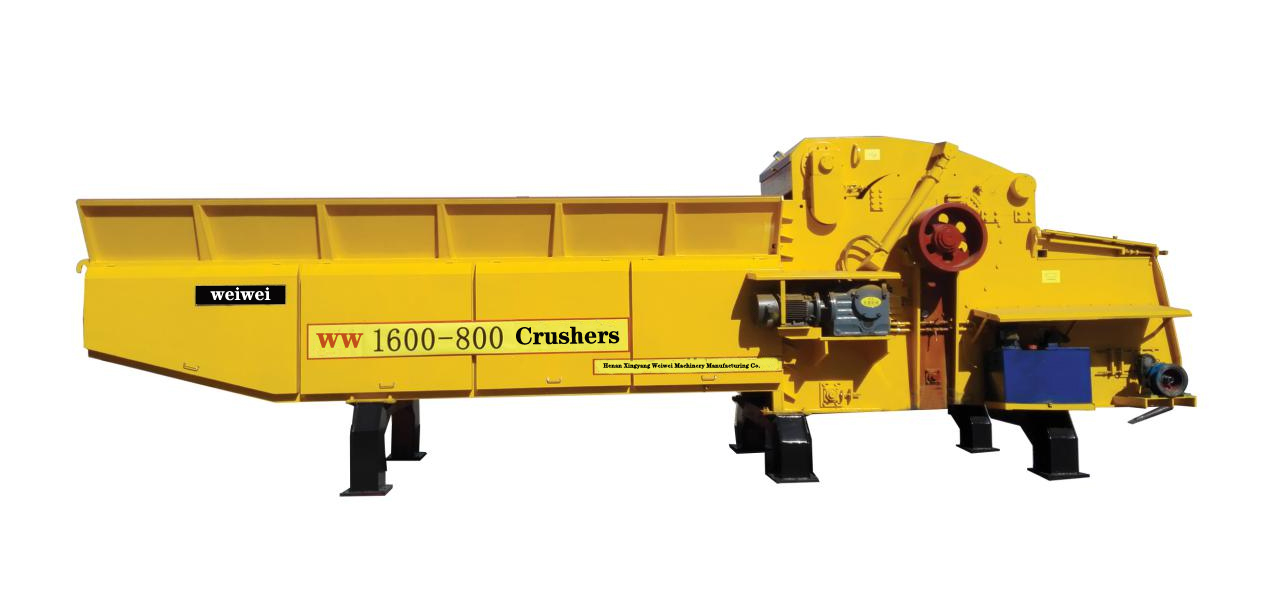

This HX1600-600 (HX1400-500) comprehensive crusher can process a wide range of raw materials, including wood such as all kinds of small diameter wood, board veneer, slats, round wood cores, construction templates, waste wood, logs, roots, etc., as well as all kinds of non-wood raw materials such as all kinds of bulk straw, cotton firewood, reeds, etc. It has a wide range of applications. It can be used for paper making, power generation, matting, feed, fertiliser, organic mulch, sawdust board, chipboard, fibreboard, medium fibre board, incense, mosquitoes, insulation materials, edible mushrooms, furniture, tables, chairs, etc. Suitable for most industries such as paper mills, construction wood recycling, furniture manufacturing, feed and fertilizer, wood pellet fuel, etc.

Main technical parameters and models:

Model	HX1600-600
Knife roller speed (rpm)	800
Number of throwing knives (pcs)	Two knives and four pieces
Main motor power (kW)	250
Production capacity (tons/hour)	25
Inlet size (mm)	1600
Overall weight (tons)	24.5
Dimensions (mm)	9600*2850*3000
Knife roller diameter(mm)	800

Note: Diesel engine mobile type can be customized

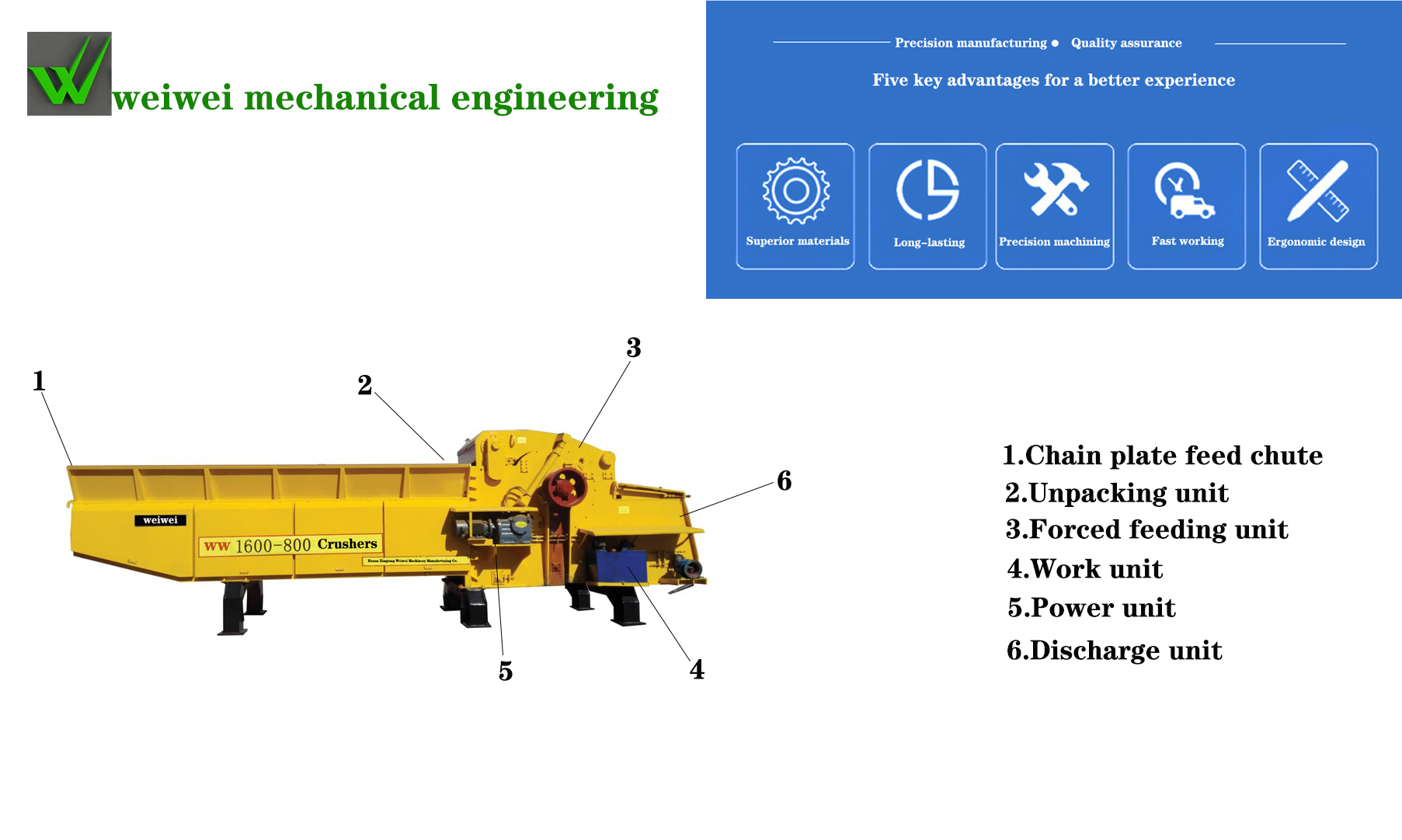

When our biomass crusher is in operation, the 250kw motor drives the internal core shaft to produce high speed rotation, the wood enters the cavity of the crusher evenly through the feeding conveyor chain plate, and the wood is crushed by the impact of the hammer head rotating at a high speed of 800 revolutions per minute.

This product can crush wood with nails and wire. It breaks the traditional mode of process structure and adopts chain plate type intelligent feeding, which can automatically adjust the feeding speed according to the load of the main motor. The machine runs at full load and avoids running empty. It makes the material more smoothly and increases the production capacity significantly. The machine can be used to catch the material, the automation level is high, the material is directly caught into the conveying platform for crushing, the production process can be operated by only one person; the design of the machine, shorten the material in the crushing chamber stagnation time, improve the service life of wearing parts

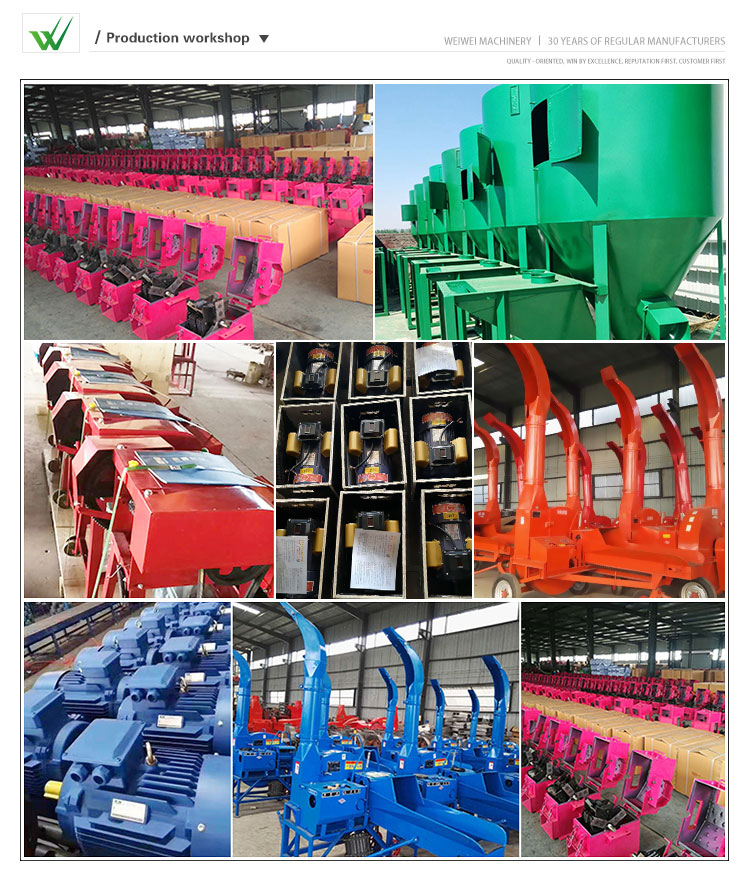

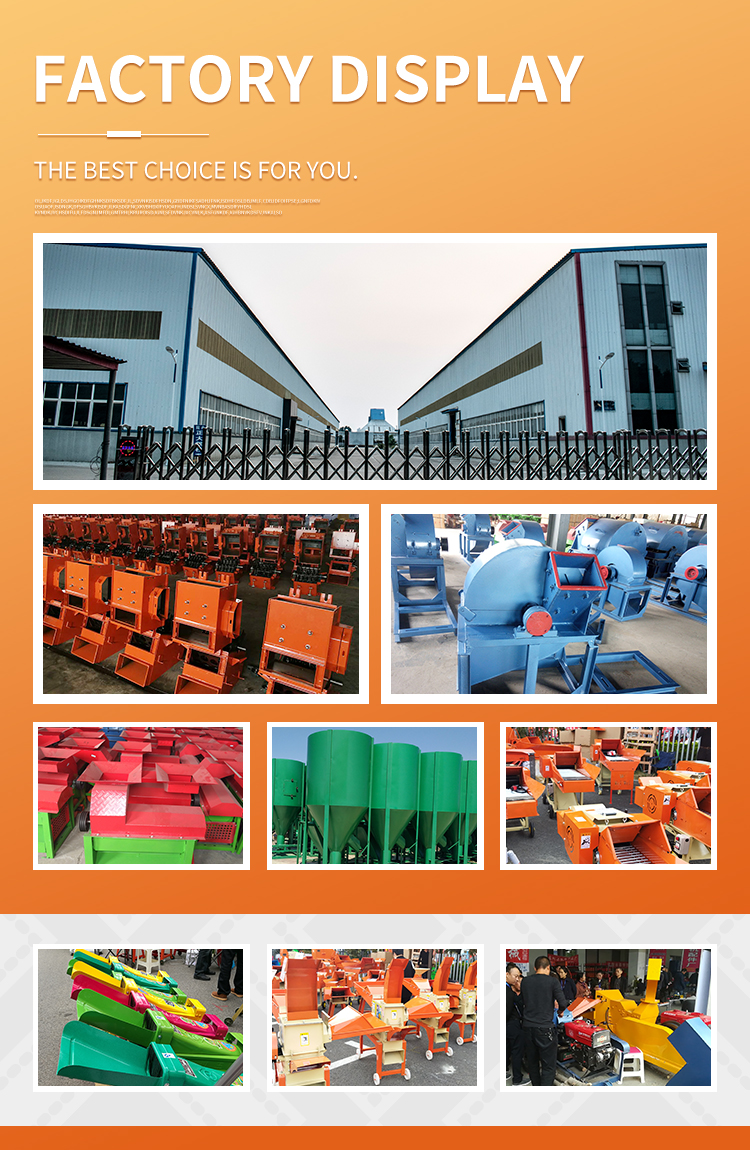

Our company is located in the western suburbs of Zhengzhou City, the capital of Henan Province, 3 km north of Xingyang Station on the Kai-Luo Expressway, and was established in 1980 with an area of 10,000 square meters and an annual production capacity of 40,000 to 50,000 units. The company mainly produces: 9ZP series kushiage, 9ZF series grass grinder, 9FQ series feed grinder, MFJ series wood grinder, MBJ series wood chipper, MPJ series wood chipper, DJM series multi-functional wood grinder, 9YF series baler, corn thresher, corn ripper, peanut sheller, biomass pellet machine, supporting power motor, etc., and all kinds of The company has a wide range of agricultural, garden and livestock breeding machinery and equipment, including feed processing machinery. The company always pursues excellence, with high quality staff, strict quality assurance system and optimal management of the entire production process, to ensure our "high-quality projects". The perfect after-sales service system allows you to have no worries.
