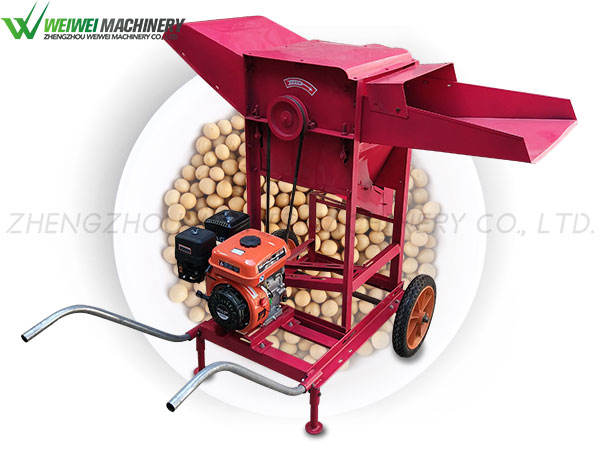

Weiwei whear and rice bean sheller diesel gasoline engine5T-50

Categories：sheller

Capacity：400-450kg/h

Power：2.2-3KW

Engine：

Applications：

 Tel：0086-371-63283021

 Email：admin@weiweimachinery.com

 WhatsApp：+86 198 3869 1608

Applicable Scope

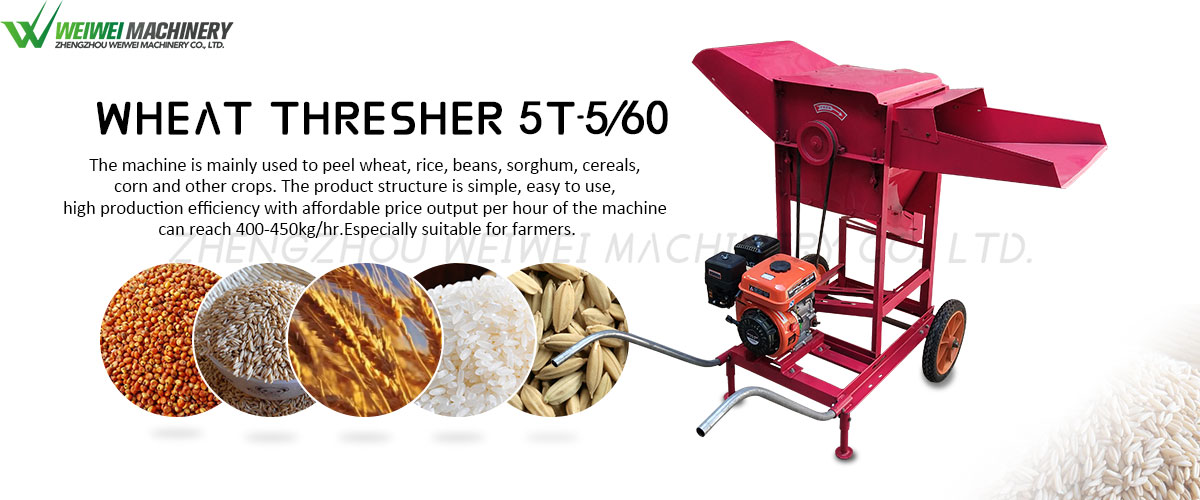

The machine is mainly used to peel wheat, rice, beans, sorghum, cereals, corn and other crops. The product structure is simple, easy to use, high production efficiency with affordable price output per hour of the machine can reach 400-450kg/hr.Especially suitable for farmers.

parameter

Model	5T-50
Weight	55kg
Product size （mm）	15008001000mm
Main shaft speed	1400r/min
Power	2.2-3KW
Motor speed	2800r/min
Voltage（V）	220V (Customized）
Capacity	400-450kg/hr
Cylinderclearance（mm）	Inlet：25-30mm outlet ：3-8mm
Power equipment	Electric motor ，diesel engine， gasoline engine

principle

Working principle

When the agricultural machine working，Choose gasoline engine, diesel engine or motor as the power, first connect the power supply idling machine

then feed the crop evenly, the crop is caused by the joint force of the rack on the roller and the screen mesh assembly, the particles fall from the screen net. The particles are blown out of the machine by the fan

sheller

wheat and rice sheller

Detail

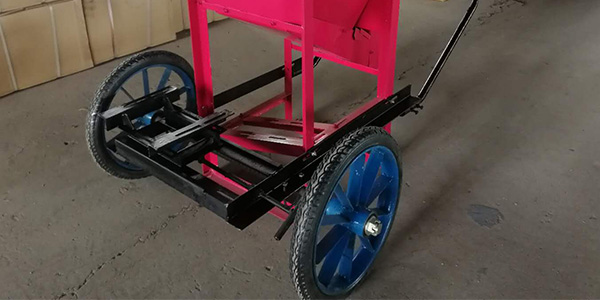

1.The whole machine is made of full steel body.The body of the threshing machine adopts the paint baking process. The machine is bright in color and good in durability than the conventional painting process. It is not easy to corrode and rust.

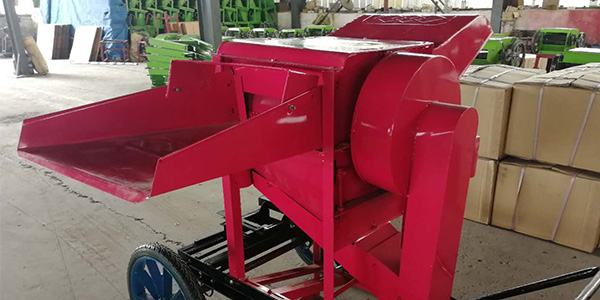

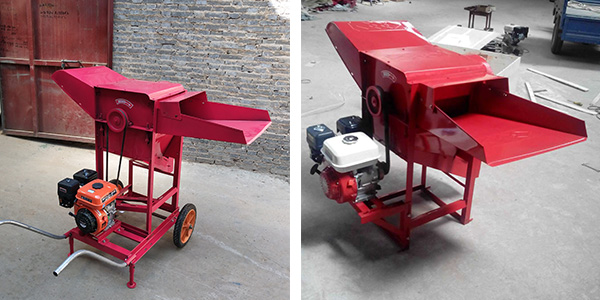

2.The sheller is mainly composed of inlet, roller, screen, fan frame, and we can be converted into gasoline engine or diesel engine style, suitable for different needs.

3.power and style can be customized according to user needs, can be motor, gasoline engine, diesel engine, or hand push, pto.Color can also be customized
