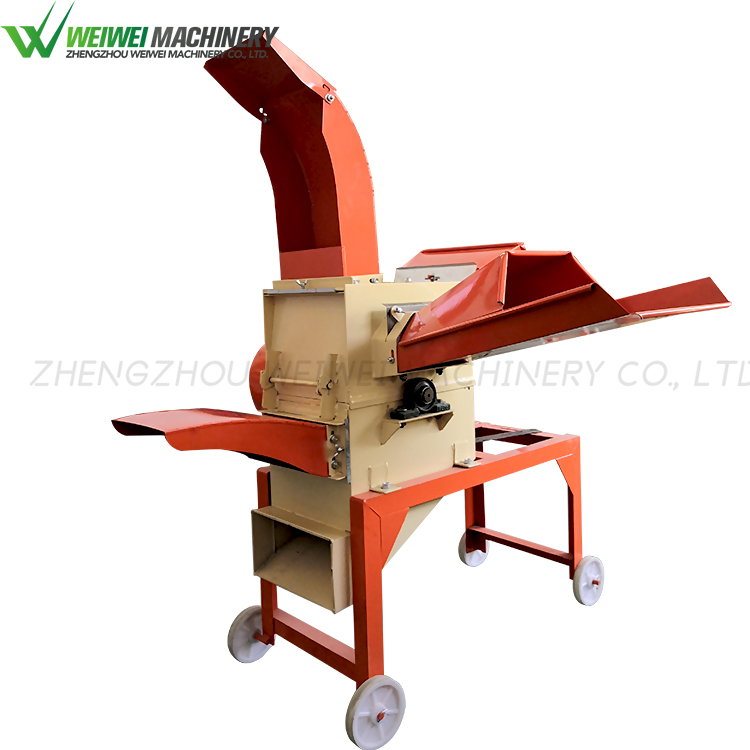

WEIWEI9ZF-400guillotine for cutting cattle and sheep fodder, grain crops farm pa

Categories：chaff cutter

Capacity：0.2-0.4t/h

Power：3KW

Engine：Electric ，diesel engine ，gasoline engine

Applications：Agriculture Farm Pasture Animal Husbandry Feed Industry, etc.

 Tel：0086-371-63283021

 Email：admin@weiweimachinery.com

 WhatsApp：+86 198 3869 1608

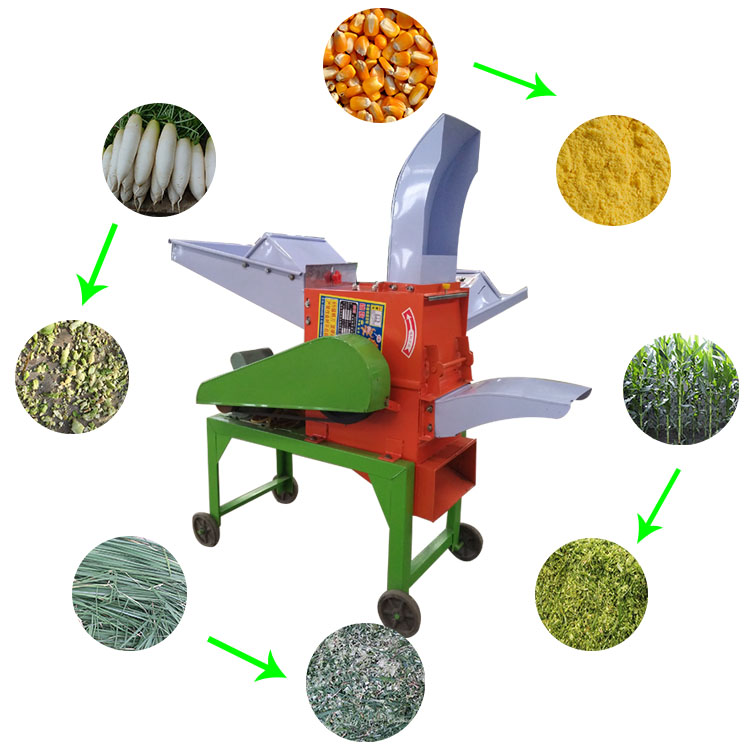

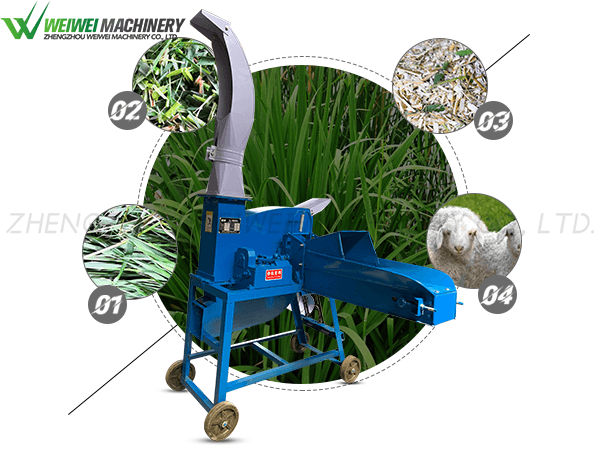

WEIWEI9ZF-400 Animal Feed Shredder is used to knead corn straw, bean straw, cotton straw, pasture grass and many other crop straws. It is used to raise a variety of animals such as cattle, sheep, horses, rabbits, chickens and ducks, for different animal breeding needs, for pastures and professional breeders. Motors, diesel engines and gasoline engines can be modified according to requirements. Our products are exported to Rome, the United States, Pakistan, Malaysia, Colombia and other more than 40 countries, and get good feedback from users.

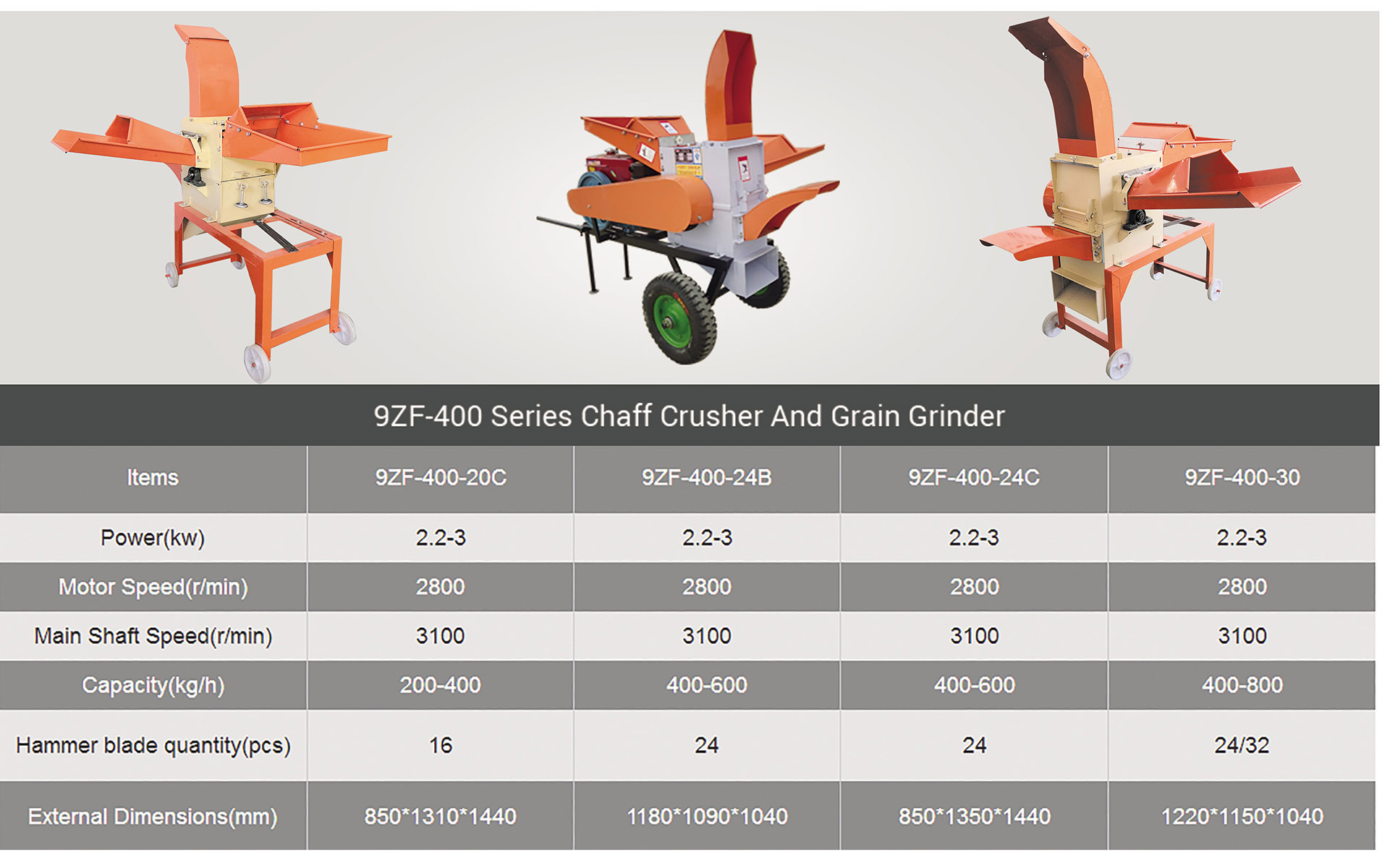

parameter

principle

Hammer grass crusher is mainly composed of shell, rotor assembly, screen, feeding device, rack discharge device and so on. The valve body and rotor assembly together form a crushing chamber. The rotor assembly is the main working part, and the crushing of the material is done in the crushing chamber.

The processed material enters the crushing chamber from the feed hopper during work, is purged and crushed by the working parts rotating at high speed, and changes the direction of material operation at the same time. Since the working parts rotating at high speed destroy the deposition of the material layers, the material moves with the rotor. In this process, grass or particles are repeatedly subjected to collisions between working parts and machines, as well as collisions and frictions between particles, causing them to be gradually crushed to materials with geometric diameters smaller than the diameter of the sieve holes. Under the action of centrifugal force and air flow, the crushed material passes through the sieve hole, leaks into the powder chamber and is discharged from the outlet, and the broken forage can also be sprayed from the high nozzle.

Detail

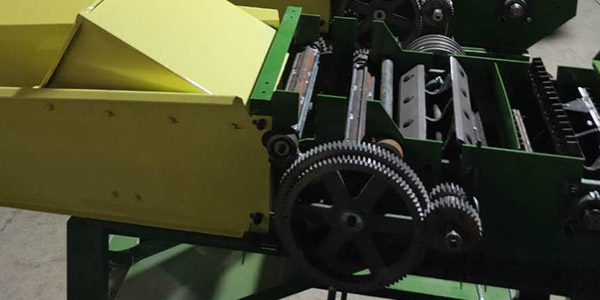

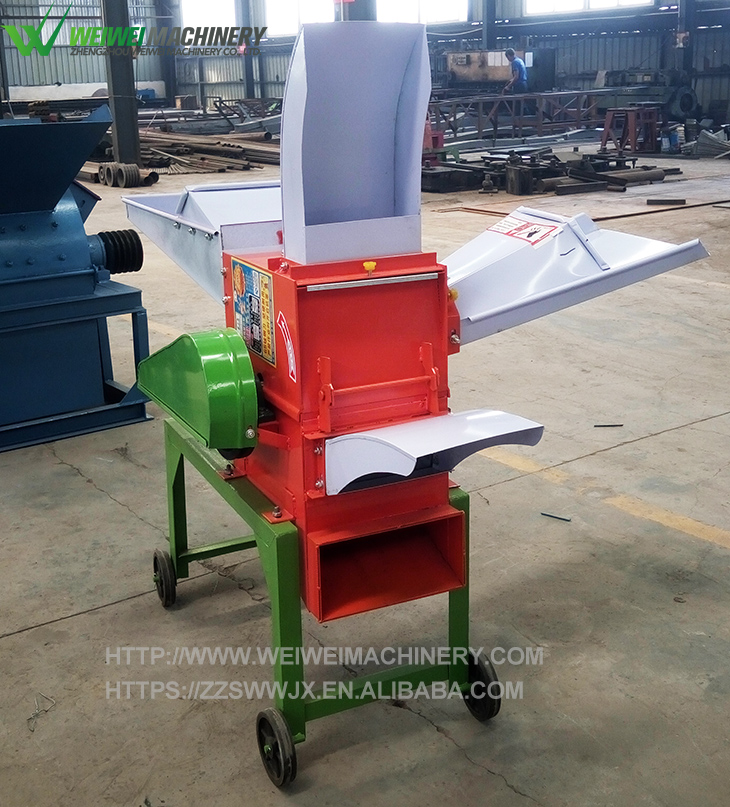

This product is composed of motor (diesel, gasoline), motor bracket, belt, cover, crushing chamber, screen, hopper, medium nozzle, high

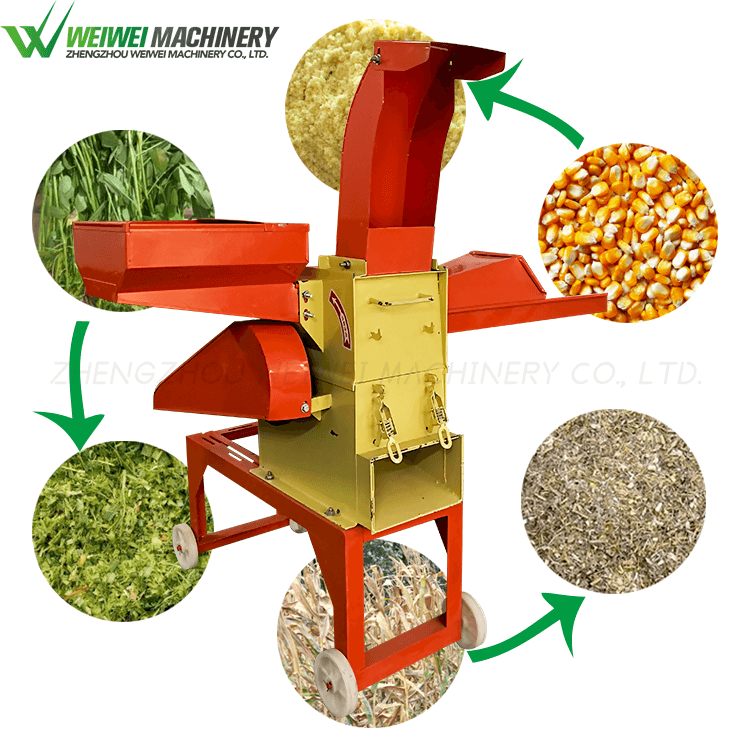

9zf-400 series of machines are mainly used to cut and grind corn stalks, bean stalks, cotton stalks, forage grass, other crop stalks, shoots, tea stalks and grape branches, as well as corn, soybeans and other cereals. The finished product is finer than other feed grinders, producing feed for cattle, sheep, horses, deer and rabbits, mostly for small and medium farms or household use. Can also be used as front end production of feed particles
