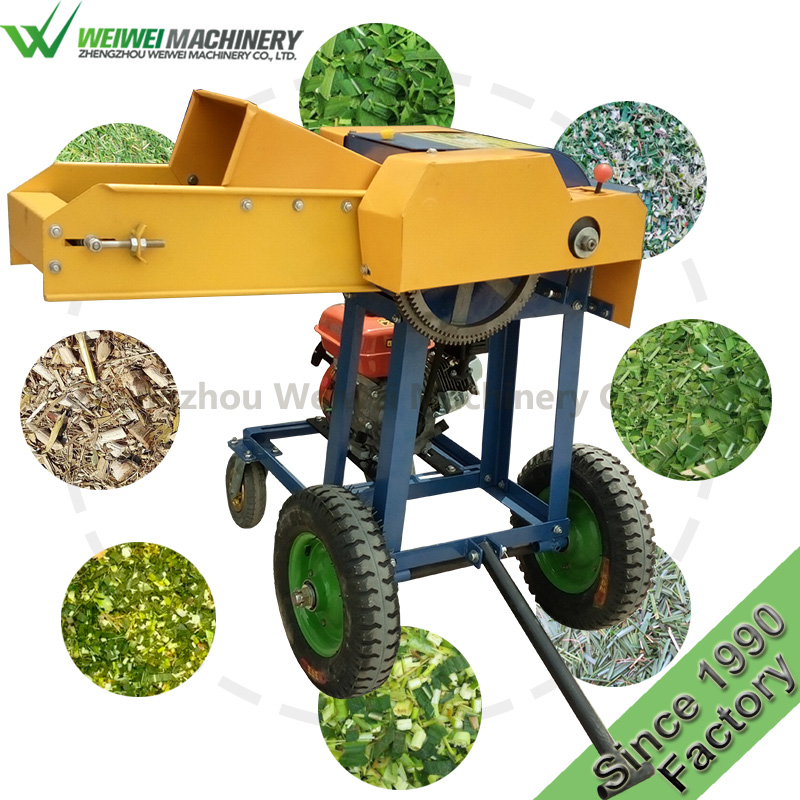

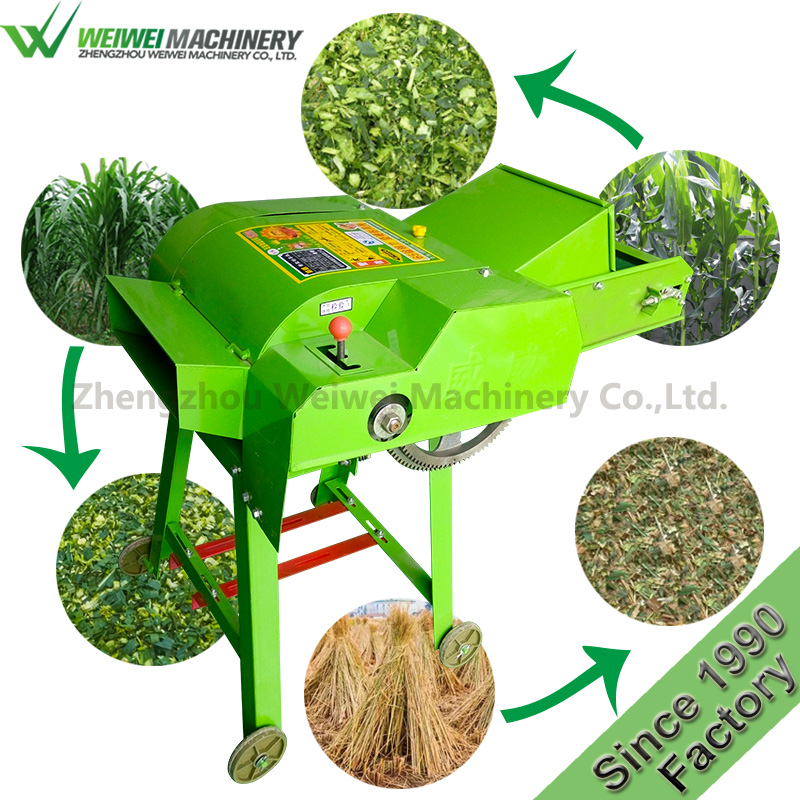

9ZP-0.4C Weiwei feed straw cutting machine

Categories：chaff cutter

Capacity：0.4-1.2t/h

Power：3KW

Engine：Electric ，diesel engine ，gasoline engine

Applications：

 Tel：0086-371-63283021

 Email：admin@weiweimachinery.com

 WhatsApp：+86 198 3869 1608

30 Years of agricultural machinery manufacturers , we can provide the best quality products and services and give you the most appropriate price .

This machine is a multi-function straw cutter with automatic feeding device .
The cutting machines can cut all kind of hay and wet pasture，grass，alfalfa plant，rice stem，maize stalk，sorghum stalks，peanut vine and other plant and crops straw.

parameter

Product size: 1055*470*850mm/1055*550*875mm,
Weight: 59-65 kilograms,
Full steel body,
Automatic feeding .
Small size ,large output.

principle

Drive by the motor, gasoline engine, diesel engine as power, first of all power equipment idling for about 2 minutes , check whether the internal has noise and after speed to reach the rated speed (to maintain the machines and the power), then feeding grass， power equipment running through the belt pulley drive gear transmits power to the drive shaft , then the drive shaft will be transferred power to roller and grass feeding device by gear at the other end and other components , transmission power to drive the hay into the studio by pressing grass roller, straw was chopped combined action with the fixed knife and the fast spinning moving blades ，the cutting grass outside of the hay cutter through the outlet port

Detail

Used as silage, or for cattle, sheep, horses, and poultry feeding.
The machine has small size, high output, beautiful appearance, durable and safe animal feed processing machinery, especially suitable for small and medium-sized farmers and livestock breeding farm
